12.1 實驗內容

通過本實驗主要學習以下內容：

? SDIO操作原理

? SD卡讀寫實現

12.2 實驗原理

SD卡是一種主要以Nand Flash作為存儲介質，具有體積小、數據傳輸速度快以及支持熱插拔的優點。如今，已被廣泛應用于數碼相機、便攜式移動設備以及手機等多種設備中。SD卡的驅動一般有SPI接口或SDIO接口，本例程介紹使用GD32F4xx的SDIO接口驅動SD卡的實現。

12.2.1 SD卡基礎知識

SD卡:secure digital memory card是一種安全存儲器件。屬性是快閃存儲器（flash eeprom），功能用來存儲數據。

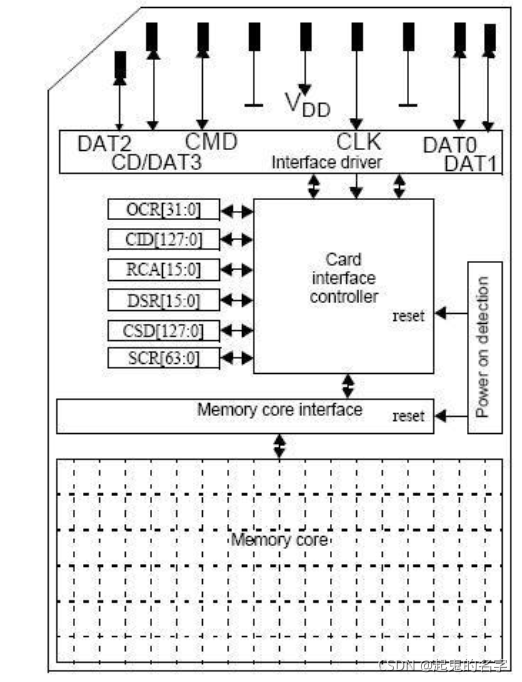

SD卡雖然是薄薄的一片，但是它并不是一個整體，而是由大量的集成電路組成。SD卡的內部結構如下圖所示，主要由信號端子，接口控制器和存儲區組成。

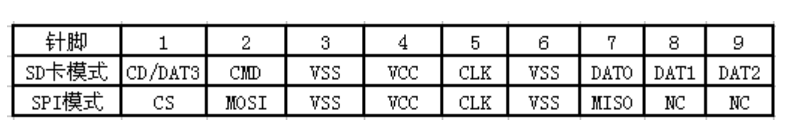

SD卡主要有兩種模式，SD模式和SPI模式。不同模式下，接口定義不同。下面是SD卡的引腳。

兩種模式的接口定義如下

SD模式中，主要由VCC(電源)，VSS(GND)，CLK（時鐘，由主控提供)，CMD(命令)，DAT0-3(數據輸入輸出)，由6線制組成進行通信。SPI模式，主要采用4線制通信，除了電源地外，由MISO，MOSI，CLK，CS組成。下面簡單介紹SD模式的操作。

要驅動SD卡工作，主要涉及兩個步驟。第一個步驟是SD卡的識別過程。第二個步驟是對SD卡進行讀寫過程，即主機控制器和SD卡之間進行數據傳輸?shù)倪^(guò)程。
要使SD卡能正常工作，一是要給SD卡供給穩定的電壓，二是要SD卡按用戶規定的方式工作。這兩項工作的實現，都是主機控制器通過給SD卡發送控制命令來實現的。
主機（SDIO控制器）要驅動SD卡工作，要使用許多的命令，包括應用層命令A(yù)CMD 和 通用命令 CMD. 主機（SDIO控制器）把命令發送給SD卡，SD卡會作出回應，這里的回應叫做響應，響應命令分為6類，分別是R1、R1b、R2、R3、R6、R7。主機（SDIO控制器）給SD卡發送命令之后，SD卡會作出響應，響應中包含主機（SDIO控制器）需要的數據，這些數據有SD的信息，容量，和存儲數據等等。上面已經提到了，SD卡工作，主要是識別和數據傳輸，它的識別過程有些復雜，寫代碼的時候，可以參考協議給的初始化流程圖。數據傳輸包括讀和寫，單字節和多字節讀寫。下兩節描述識別初始化流程圖和數據讀寫時序圖。

1、讀寫數據的時序圖

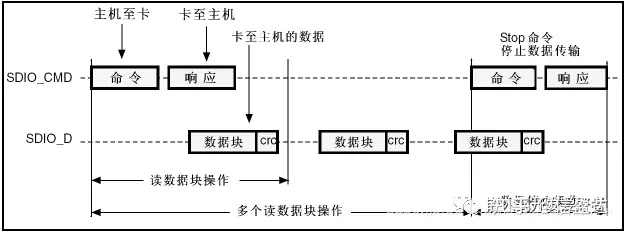

SDIO與SD卡通信一般以數據塊的形式進行傳輸，SDIO(多)數據塊讀操作，如下圖所示。

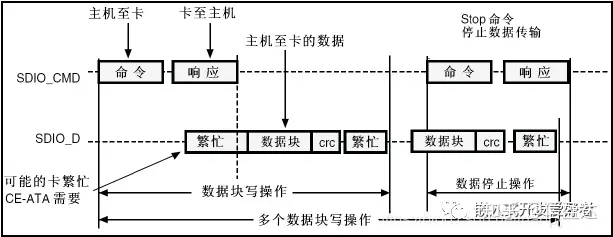

SDIO(多)數據塊寫操作，如下圖所示。

2、命令格式

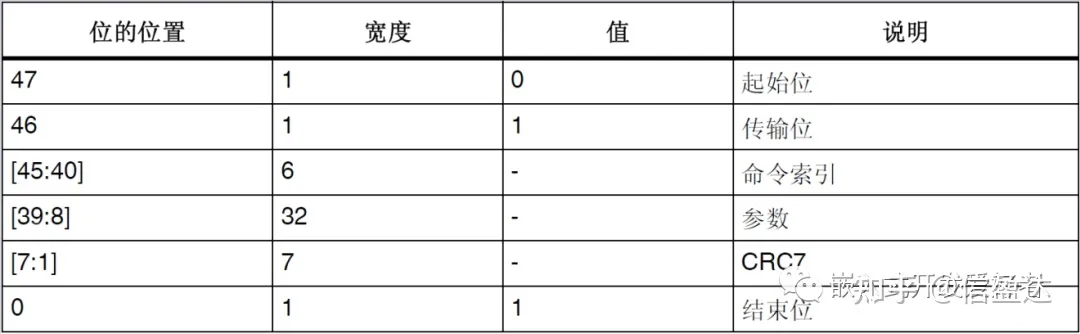

SDIO所有的命令和響應都是在SDIO_CMD引腳上面?zhèn)鬏數?，命令長度固定為48位，SDIO命令格式如下表所示。

3、寄存器
SDIO控制器的寄存器，主要設置SDIO控制器和命令的索引與參數。SD卡有5個寄存器CID,RCA,CSD,SCR.OCR。SD卡的信息從SD卡寄存器中獲取。

SD卡正常工作，就是根據SD卡初始化流程圖，發送命令，收到回復，直到流程結束。傳輸數據，也是根據讀寫時序圖，將要發送的數據放進命令中發送出去。

12.2.2 SDIO模塊原理

SDIO為安全的數字輸入輸出接口，可以用于驅動SD卡、EMMC等，主要特征如下：

? e*MMC： 與多媒體卡系統規格書 V4.2 及之前的版本全兼容。有三種不同的數據總線模式：1 位(默認)、 4 位和 8 位；
? SD 卡： 與SD 存儲卡規格版本3.0 全兼容；
? SD I/O： 與 SD I/O 卡規格版本 3.0 全兼容，有兩種不同的數據總線模式： 1 位(默認)和4位（包括SDR和DDR）；
? 104MHz 數據傳輸頻率和8 位數據傳輸模式；
? 中斷和 DMA 請求；
? 數據傳輸支持 DDR 模式。

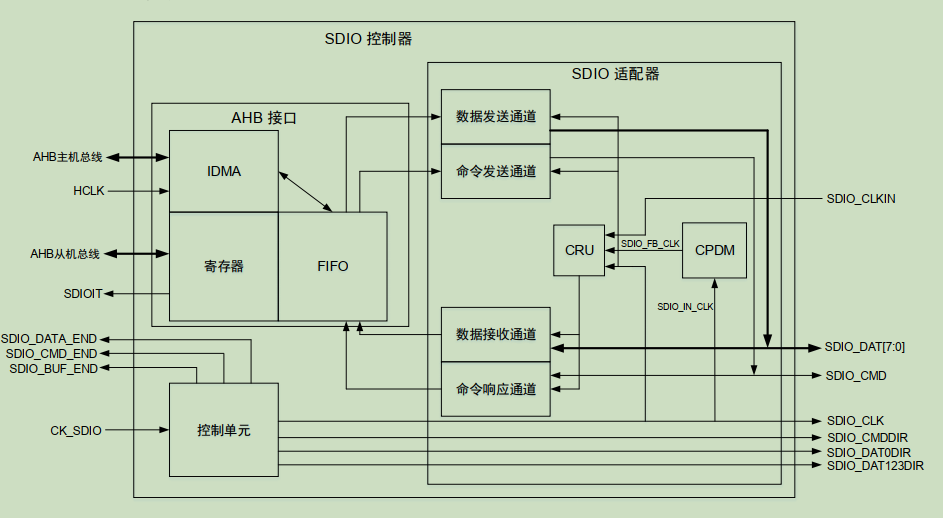

SDIO模塊結構框圖如下所示。主要包括以下三個部分：SDIO 適配器：由控制單元、命令單元和數據單元組成，控制單元管理時鐘信號，命令單元管理命令的傳輸，數據單元管理數據的傳輸； AHB 接口：包括通過 AHB 總線訪問的寄存器、用于數據傳輸?shù)?FIFO 單元以及產生中斷和 DMA 請求信號； 內部 DMA（IDMA）以及 AHB 主機接口 ?。

SDIO模塊可以實現對SD卡的完全驅動以及協議的實現，包括命令、響應等相關操作，本例程實現使用SDIO驅動SD卡初始化以及讀寫測試等相關操作，具體實現可以參考GD32H7用戶手冊以及代碼解析等。

12.3 硬件設計

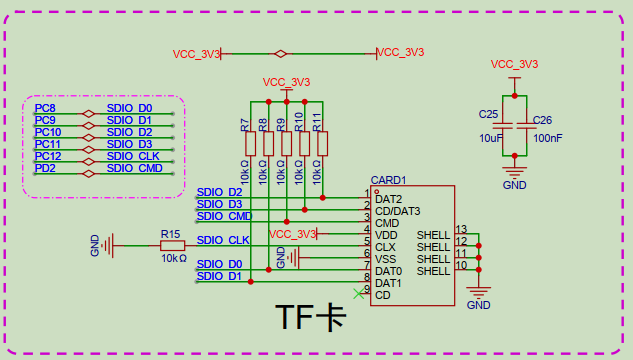

SD卡相關硬件電路如下圖所示，實驗板上具有SD卡卡座，信號線上有四根數據線，一根CMD命令線以及一根CLK時鐘線，所有信號線通過10K電阻進行上拉，電源地信號線具有10uf以及100nf電容，SD卡插入時，金屬接觸點朝下插入。

12.4 代碼解析

12.4.1 SDIO初始化配置函數

SDIO初始化配置在sd_io_init（）函數中，其中包括sd_init()初始化、sd_card_information_get（）SD卡信息獲取、sd_card_select_deselect（）SD卡選擇、sd_cardstatus_get（）SD卡狀態獲取、sd_bus_mode_config（）SD卡總線寬度配置以及sd_transfer_mode_config（）SD卡通信模式配置，歷程中選擇了4線查詢模式。

C
sd_error_enum sd_io_init(void)
{
sd_error_enum status = SD_OK;
uint32_t cardstate = 0;

status = sd_init();
if(SD_OK == status) {
status = sd_card_information_get(&sd_cardinfo);
}
if(SD_OK == status) {
status = sd_card_select_deselect(sd_cardinfo.card_rca);
}
status = sd_cardstatus_get(&cardstate);
if(cardstate & 0x02000000) {
printf_log("\r\n the card is locked!");

status = sd_lock_unlock(SD_UNLOCK);
if(status != SD_OK) {
return SD_LOCK_UNLOCK_FAILED;
} else {
printf_log("\r\n the card is unlocked successfully!");
}
}

if((SD_OK == status) && (!(cardstate & 0x02000000))) {
/* set bus mode */

if (SDIO_BUSMODE == BUSMODE_4BIT)

status = sd_bus_mode_config(SDIO_BUSMODE_4BIT, SDIO_SPEEDMODE);

else

status = sd_bus_mode_config(SDIO_BUSMODE_1BIT, SDIO_SPEEDMODE);

endif

}

ifdef USE_18V_SWITCH

if(SD_OK == status) {
/* UHS-I Hosts can perform sampling point tuning using tuning command ??*/
status = sd_tuning();
}

endif /* USE_18V_SWITCH */

if(SD_OK == status) {
/* set data transfer mode */
/* if use 1.8V high speed mode, please select the DMA mode */
status = sd_transfer_mode_config(SDIO_DTMODE);
}
return status;
}

12.4.2 獲取SD卡信息函數

獲取SD卡信息的函數如下所示，card_info_get（）。

C
void card_info_get(void)
{
uint8_t sd_spec, sd_spec3, sd_spec4, sd_security;
uint32_t block_count, block_size;
uint16_t temp_ccc;
printf_log("\r\n Card information:");
sd_spec = (sd_scr[1] & 0x0F000000) >> 24;
sd_spec3 = (sd_scr[1] & 0x00008000) >> 15;
sd_spec4 = (sd_scr[1] & 0x00000400) >> 10;
if(2 == sd_spec) {
if(1 == sd_spec3) {
if(1 == sd_spec4) {
printf_log("\r\n## Card version 4.xx ##");
} else {
printf_log("\r\n## Card version 3.0x ##");
}
} else {
printf_log("\r\n## Card version 2.00 ##");
}
} else if(1 == sd_spec) {
printf_log("\r\n## Card version 1.10 ##");
} else if(0 == sd_spec) {
printf_log("\r\n## Card version 1.0x ##");
}

sd_security = (sd_scr[1] & 0x00700000) >> 20;
if(2 == sd_security) {
printf_log("\r\n## security v1.01 ##");
} else if(3 == sd_security) {
printf_log("\r\n## security v2.00 ##");
} else if(4 == sd_security) {
printf_log("\r\n## security v3.00 ##");
}

block_count = (sd_cardinfo.card_csd.c_size + 1) * 1024;
block_size = 512;
printf_log("\r\n## Device size is %dKB ##", sd_card_capacity_get());
printf_log("\r\n## Block size is %dB ##", block_size);
printf_log("\r\n## Block count is %d ##", block_count);

if(sd_cardinfo.card_csd.read_bl_partial) {
printf_log("\r\n## Partial blocks for read allowed ##");
}
if(sd_cardinfo.card_csd.write_bl_partial) {
printf_log("\r\n## Partial blocks for write allowed ##");
}
temp_ccc = sd_cardinfo.card_csd.ccc;
printf_log("\r\n## CardCommandClasses is: %x ##", temp_ccc);
if((SD_CCC_BLOCK_READ & temp_ccc) && (SD_CCC_BLOCK_WRITE & temp_ccc)) {
printf_log("\r\n## Block operation supported ##");
}
if(SD_CCC_ERASE & temp_ccc) {
printf_log("\r\n## Erase supported ##");
}
if(SD_CCC_WRITE_PROTECTION & temp_ccc) {
printf_log("\r\n## Write protection supported ##");
}
if(SD_CCC_LOCK_CARD & temp_ccc) {
printf_log("\r\n## Lock unlock supported ##");
}
if(SD_CCC_APPLICATION_SPECIFIC & temp_ccc) {
printf_log("\r\n## Application specific supported ##");
}
if(SD_CCC_IO_MODE & temp_ccc) {
printf_log("\r\n## I/O mode supported ##");
}
if(SD_CCC_SWITCH & temp_ccc) {
printf_log("\r\n## Switch function supported ##");
}
}

12.4.3 SD卡數據塊寫入函數

SD卡數據塊寫入函數如下所示，通過該函數可實現SD卡數據塊的數據寫入。

C
sd_error_enum sd_block_write(uint32_t *pwritebuffer, uint32_t writeaddr, uint16_t blocksize)
{
/* initialize the variables */
sd_error_enum status = SD_OK;
uint8_t cardstate = 0U;
uint32_t count = 0U, align = 0U, datablksize = SDIO_DATABLOCKSIZE_1BYTE, *ptempbuff = pwritebuffer;
uint32_t transbytes = 0U, restwords = 0U, response = 0U;
__IO uint32_t timeout = 0U;

if(NULL == pwritebuffer) {
status = SD_PARAMETER_INVALID;
return status;
}

transerror = SD_OK;
transend = 0U;
totalnumber_bytes = 0U;
/* clear all DSM configuration */
sdio_data_config(SDIO, 0U, 0U, SDIO_DATABLOCKSIZE_1BYTE);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOCARD);
sdio_dsm_disable(SDIO);
sdio_idma_disable(SDIO);

/* check whether the card is locked */
if(sdio_response_get(SDIO, SDIO_RESPONSE0) & SD_CARDSTATE_LOCKED) {
status = SD_LOCK_UNLOCK_FAILED;
return status;
}

/* blocksize is fixed in 512B for SDHC card */
if(SDIO_HIGH_CAPACITY_SD_CARD != cardtype) {
writeaddr *= 512U;
} else {
blocksize = 512U;
}

align = blocksize & (blocksize - 1U);
if((blocksize > 0U) && (blocksize <= 2048U) && (0U == align)) {
datablksize = sd_datablocksize_get(blocksize);
/* send CMD16(SET_BLOCKLEN) to set the block length */
sdio_command_response_config(SDIO, SD_CMD_SET_BLOCKLEN, (uint32_t)blocksize, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);

/* check if some error occurs */
status = r1_error_check(SD_CMD_SET_BLOCKLEN);
if(SD_OK != status) {
return status;
}
} else {
status = SD_PARAMETER_INVALID;
return status;
}

/* send CMD13(SEND_STATUS), addressed card sends its status registers */
sdio_command_response_config(SDIO, SD_CMD_SEND_STATUS, (uint32_t)sd_rca << SD_RCA_SHIFT, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_SEND_STATUS);
if(SD_OK != status) {
return status;
}

response = sdio_response_get(SDIO, SDIO_RESPONSE0);
timeout = 100000U;

while((0U == (response & SD_R1_READY_FOR_DATA)) && (timeout > 0U)) {
/* continue to send CMD13 to polling the state of card until buffer empty or timeout */
--timeout;
/* send CMD13(SEND_STATUS), addressed card sends its status registers */
sdio_command_response_config(SDIO, SD_CMD_SEND_STATUS, (uint32_t)sd_rca << SD_RCA_SHIFT, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_SEND_STATUS);
if(SD_OK != status) {
return status;
}
response = sdio_response_get(SDIO, SDIO_RESPONSE0);
}
if(0U == timeout) {
return SD_ERROR;
}

stopcondition = 0U;
totalnumber_bytes = blocksize;

/* configure the SDIO data transmisson */
sdio_data_config(SDIO, SD_DATATIMEOUT, totalnumber_bytes, datablksize);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOCARD);
sdio_trans_start_enable(SDIO);

if(SD_POLLING_MODE == transmode) {
/* send CMD24(WRITE_BLOCK) to write a block */
sdio_command_response_config(SDIO, SD_CMD_WRITE_BLOCK, writeaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_WRITE_BLOCK);
if(SD_OK != status) {
return status;
}

/* polling mode */
while(!sdio_flag_get(SDIO, SDIO_FLAG_DTCRCERR | SDIO_FLAG_DTTMOUT | SDIO_FLAG_TXURE | SDIO_FLAG_DTBLKEND | SDIO_FLAG_DTEND)) {
if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_TFH)) {
/* at least 8 words can be written into the FIFO */
if((totalnumber_bytes - transbytes) < SD_FIFOHALF_BYTES) {
restwords = (totalnumber_bytes - transbytes) / 4U + (((totalnumber_bytes - transbytes) % 4U == 0U) ? 0U : 1U);
for(count = 0U; count < restwords; count++) {
sdio_data_write(SDIO, *ptempbuff);
++ptempbuff;
transbytes += 4U;
}
} else {
for(count = 0U; count < SD_FIFOHALF_WORDS; count++) {
sdio_data_write(SDIO, *(ptempbuff + count));
}
/* 8 words(32 bytes) has been transferred */
ptempbuff += SD_FIFOHALF_WORDS;
transbytes += SD_FIFOHALF_BYTES;
}
}
}
sdio_trans_start_disable(SDIO);
/* whether some error occurs and return it */
if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTCRCERR)) {
status = SD_DATA_CRC_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_DTCRCERR);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTTMOUT)) {
status = SD_DATA_TIMEOUT;
sdio_flag_clear(SDIO, SDIO_FLAG_DTTMOUT);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_TXURE)) {
status = SD_TX_UNDERRUN_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_TXURE);
return status;
} else {
/* if else end */
}

} else if(SD_DMA_MODE == transmode) {
/* DMA mode */
/* enable the SDIO corresponding interrupts and DMA */
sdio_interrupt_enable(SDIO, SDIO_INT_DTCRCERR | SDIO_INT_DTTMOUT | SDIO_INT_TXURE | SDIO_INT_DTEND);
dma_config(pwritebuffer, (uint32_t)(blocksize >> 5));
sdio_idma_enable(SDIO);

/* send CMD24(WRITE_BLOCK) to write a block */
sdio_command_response_config(SDIO, SD_CMD_WRITE_BLOCK, writeaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_WRITE_BLOCK);
if(SD_OK != status) {
return status;
}

while((0U == transend) && (SD_OK == transerror)) {
}

if(SD_OK != transerror) {
return transerror;
}
} else {
status = SD_PARAMETER_INVALID;
return status;
}

/* clear the DATA_FLAGS flags */
sdio_flag_clear(SDIO, SDIO_MASK_DATA_FLAGS);
/* get the card state and wait the card is out of programming and receiving state */
status = sd_card_state_get(&cardstate);
while((SD_OK == status) && ((SD_CARDSTATE_PROGRAMMING == cardstate) || (SD_CARDSTATE_RECEIVING == cardstate))) {
status = sd_card_state_get(&cardstate);
}
return status;
}

12.4.4 SD卡數據塊讀取函數

SD卡數據塊讀取函數如下所示。

C
sd_error_enum sd_block_read(uint32_t *preadbuffer, uint32_t readaddr, uint16_t blocksize)
{
/* initialize the variables */
sd_error_enum status = SD_OK;
uint32_t count = 0U, align = 0U, datablksize = SDIO_DATABLOCKSIZE_1BYTE, *ptempbuff = preadbuffer;
__IO uint32_t timeout = 0U;

if(NULL == preadbuffer) {
status = SD_PARAMETER_INVALID;
return status;
}

transerror = SD_OK;
transend = 0U;
totalnumber_bytes = 0U;
/* clear all DSM configuration */
sdio_data_config(SDIO, 0U, 0U, SDIO_DATABLOCKSIZE_1BYTE);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOCARD);
sdio_dsm_disable(SDIO);
sdio_idma_disable(SDIO);

/* check whether the card is locked */
if(sdio_response_get(SDIO, SDIO_RESPONSE0) & SD_CARDSTATE_LOCKED) {
status = SD_LOCK_UNLOCK_FAILED;
return status;
}

/* blocksize is fixed in 512B for SDHC card */
if(SDIO_HIGH_CAPACITY_SD_CARD != cardtype) {
readaddr *= 512U;
} else {
blocksize = 512U;
}

align = blocksize & (blocksize - 1U);

if((blocksize > 0U) && (blocksize <= 2048U) && (0U == align)) {
datablksize = sd_datablocksize_get(blocksize);
/* send CMD16(SET_BLOCKLEN) to set the block length */
sdio_command_response_config(SDIO, SD_CMD_SET_BLOCKLEN, (uint32_t)blocksize, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);

/* check if some error occurs */
status = r1_error_check(SD_CMD_SET_BLOCKLEN);
if(SD_OK != status) {
return status;
}
} else {
status = SD_PARAMETER_INVALID;
return status;
}

stopcondition = 0U;
totalnumber_bytes = (uint32_t)blocksize;

if(SD_POLLING_MODE == transmode) {

/* configure SDIO data transmisson */
sdio_data_config(SDIO, SD_DATATIMEOUT, totalnumber_bytes, datablksize);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOSDIO);
sdio_trans_start_enable(SDIO);

/* send CMD17(READ_SINGLE_BLOCK) to read a block */
sdio_command_response_config(SDIO, SD_CMD_READ_SINGLE_BLOCK, (uint32_t)readaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_READ_SINGLE_BLOCK);
if(SD_OK != status) {
return status;
}

/* polling mode */
while(!sdio_flag_get(SDIO, SDIO_FLAG_DTCRCERR | SDIO_FLAG_DTTMOUT | SDIO_FLAG_RXORE | SDIO_FLAG_DTBLKEND | SDIO_FLAG_DTEND)) {
if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_RFH)) {
/* at least 8 words can be read in the FIFO */
for(count = 0U; count < SD_FIFOHALF_WORDS; count++) {
*(ptempbuff + count) = sdio_data_read(SDIO);
}
ptempbuff += SD_FIFOHALF_WORDS;
}
}

sdio_trans_start_disable(SDIO);

/* whether some error occurs and return it */
if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTCRCERR)) {
status = SD_DATA_CRC_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_DTCRCERR);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTTMOUT)) {
status = SD_DATA_TIMEOUT;
sdio_flag_clear(SDIO, SDIO_FLAG_DTTMOUT);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_RXORE)) {
status = SD_RX_OVERRUN_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_RXORE);
return status;
} else {
/* if else end */
}

while((SET != sdio_flag_get(SDIO, SDIO_FLAG_RFE)) && (SET == sdio_flag_get(SDIO, SDIO_FLAG_DATSTA))) {
*ptempbuff = sdio_data_read(SDIO);
++ptempbuff;
}
/* clear the DATA_FLAGS flags */
sdio_flag_clear(SDIO, SDIO_MASK_DATA_FLAGS);
} else if(SD_DMA_MODE == transmode) {
/* DMA mode */
/* enable the SDIO corresponding interrupts and DMA function */
sdio_interrupt_enable(SDIO, SDIO_INT_CCRCERR | SDIO_INT_DTTMOUT | SDIO_INT_RXORE | SDIO_INT_DTEND);
dma_config(preadbuffer, (uint32_t)(blocksize >> 5));
sdio_idma_enable(SDIO);

/* configure SDIO data transmisson */
sdio_data_config(SDIO, SD_DATATIMEOUT, totalnumber_bytes, datablksize);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOSDIO);
sdio_trans_start_enable(SDIO);

/* send CMD17(READ_SINGLE_BLOCK) to read a block */
sdio_command_response_config(SDIO, SD_CMD_READ_SINGLE_BLOCK, (uint32_t)readaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_READ_SINGLE_BLOCK);
if(SD_OK != status) {
return status;
}

while((0U == transend) && (SD_OK == transerror)) {
}
if(SD_OK != transerror) {
return transerror;
}
} else {
status = SD_PARAMETER_INVALID;
}
return status;
}

12.4.5 SD卡lock和unlock配置函數

SD卡lock和unlock配置函數如下所示。通過形參實現對SD卡的lock和unlock，若希望lock SD卡，lcokstate配置為SD_LOCK；若希望unlock SD卡，lockstate配置為SD_UNLOCK.

C
sd_error_enum sd_lock_unlock(uint8_t lockstate)
{
sd_error_enum status = SD_OK;
uint8_t cardstate = 0U, tempbyte = 0U;
uint32_t pwd1 = 0U, pwd2 = 0U, response = 0U, timeout = 0U;
uint16_t tempccc = 0U;

/* get the card command classes from CSD */
tempbyte = (uint8_t)((sd_csd[1] & SD_MASK_24_31BITS) >> 24U);
tempccc = ((uint16_t)tempbyte << 4U);
tempbyte = (uint8_t)((sd_csd[1] & SD_MASK_16_23BITS) >> 16U);
tempccc |= (((uint16_t)tempbyte & 0xF0U) >> 4U);

if(0U == (tempccc & SD_CCC_LOCK_CARD)) {
/* don't support the lock command */
status = SD_FUNCTION_UNSUPPORTED;
return status;
}
/* password pattern */
pwd1 = (0x01020600U | lockstate);
pwd2 = 0x03040506U;

/* clear all DSM configuration */
sdio_data_config(SDIO, 0U, 0U, SDIO_DATABLOCKSIZE_1BYTE);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOCARD);
sdio_dsm_disable(SDIO);
sdio_idma_disable(SDIO);

/* send CMD16(SET_BLOCKLEN) to set the block length */
sdio_command_response_config(SDIO, SD_CMD_SET_BLOCKLEN, (uint32_t)8U, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_SET_BLOCKLEN);
if(SD_OK != status) {
return status;
}

/* send CMD13(SEND_STATUS), addressed card sends its status register */
sdio_command_response_config(SDIO, SD_CMD_SEND_STATUS, (uint32_t)sd_rca << SD_RCA_SHIFT, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_SEND_STATUS);
if(SD_OK != status) {
return status;
}

response = sdio_response_get(SDIO, SDIO_RESPONSE0);
timeout = 100000U;
while((0U == (response & SD_R1_READY_FOR_DATA)) && (timeout > 0U)) {
/* continue to send CMD13 to polling the state of card until buffer empty or timeout */
--timeout;
/* send CMD13(SEND_STATUS), addressed card sends its status registers */
sdio_command_response_config(SDIO, SD_CMD_SEND_STATUS, (uint32_t)sd_rca << SD_RCA_SHIFT, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_SEND_STATUS);
if(SD_OK != status) {
return status;
}
response = sdio_response_get(SDIO, SDIO_RESPONSE0);
}
if(0U == timeout) {
status = SD_ERROR;
return status;
}

/* send CMD42(LOCK_UNLOCK) to set/reset the password or lock/unlock the card */
sdio_command_response_config(SDIO, SD_CMD_LOCK_UNLOCK, (uint32_t)0x0, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_LOCK_UNLOCK);
if(SD_OK != status) {
return status;
}

response = sdio_response_get(SDIO, SDIO_RESPONSE0);

/* configure the SDIO data transmisson */
sdio_data_config(SDIO, SD_DATATIMEOUT, (uint32_t)8, SDIO_DATABLOCKSIZE_8BYTES);
sdio_data_transfer_config(SDIO, SDIO_TRANSMODE_BLOCKCOUNT, SDIO_TRANSDIRECTION_TOCARD);
sdio_dsm_enable(SDIO);

/* write password pattern */
sdio_data_write(SDIO, pwd1);
sdio_data_write(SDIO, pwd2);

/* whether some error occurs and return it */
if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTCRCERR)) {
status = SD_DATA_CRC_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_DTCRCERR);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_DTTMOUT)) {
status = SD_DATA_TIMEOUT;
sdio_flag_clear(SDIO, SDIO_FLAG_DTTMOUT);
return status;
} else if(RESET != sdio_flag_get(SDIO, SDIO_FLAG_TXURE)) {
status = SD_TX_UNDERRUN_ERROR;
sdio_flag_clear(SDIO, SDIO_FLAG_TXURE);
return status;
} else {
/* if else end */
}

/* clear the SDIO_INTC flags */
sdio_flag_clear(SDIO, SDIO_MASK_INTC_FLAGS);
/* get the card state and wait the card is out of programming and receiving state */
status = sd_card_state_get(&cardstate);
while((SD_OK == status) && ((SD_CARDSTATE_PROGRAMMING == cardstate) || (SD_CARDSTATE_RECEIVING == cardstate))) {
status = sd_card_state_get(&cardstate);
}
return status;
}

12.4.6 SD卡erase擦除操作函數

SD卡擦除操作函數如下，其形參為擦除起始地址以及結束地址。

C
sd_error_enum sd_erase(uint32_t startaddr, uint32_t endaddr)
{
/* initialize the variables */
sd_error_enum status = SD_OK;
uint32_t count = 0U, clkdiv = 0U;
__IO uint32_t delay = 0U;
uint8_t cardstate = 0U, tempbyte = 0U;
uint16_t tempccc = 0U;

/* get the card command classes from CSD */
tempbyte = (uint8_t)((sd_csd[1] & SD_MASK_24_31BITS) >> 24U);
tempccc = (uint16_t)((uint16_t)tempbyte << 4U);
tempbyte = (uint8_t)((sd_csd[1] & SD_MASK_16_23BITS) >> 16U);
tempccc |= ((uint16_t)tempbyte & 0xF0U) >> 4U;
if(0U == (tempccc & SD_CCC_ERASE)) {
/* don't support the erase command */
status = SD_FUNCTION_UNSUPPORTED;
return status;
}
clkdiv = (SDIO_CLKCTL(SDIO) & SDIO_CLKCTL_DIV);
clkdiv *= 2U;
delay = 168000U / clkdiv;

/* check whether the card is locked */
if(sdio_response_get(SDIO, SDIO_RESPONSE0) & SD_CARDSTATE_LOCKED) {
status = SD_LOCK_UNLOCK_FAILED;
return(status);
}

/* blocksize is fixed in 512B for SDHC card */
if(SDIO_HIGH_CAPACITY_SD_CARD != cardtype) {
startaddr *= 512U;
endaddr *= 512U;
}

if((SDIO_STD_CAPACITY_SD_CARD_V1_1 == cardtype) || (SDIO_STD_CAPACITY_SD_CARD_V2_0 == cardtype) ||
(SDIO_HIGH_CAPACITY_SD_CARD == cardtype)) {
/* send CMD32(ERASE_WR_BLK_START) to set the address of the first write block to be erased */
sdio_command_response_config(SDIO, SD_CMD_ERASE_WR_BLK_START, startaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_ERASE_WR_BLK_START);
if(SD_OK != status) {
return status;
}

/* send CMD33(ERASE_WR_BLK_END) to set the address of the last write block of the continuous range to be erased */
sdio_command_response_config(SDIO, SD_CMD_ERASE_WR_BLK_END, endaddr, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_ERASE_WR_BLK_END);
if(SD_OK != status) {
return status;
}
}

/* send CMD38(ERASE) to set the address of the first write block to be erased */
sdio_command_response_config(SDIO, SD_CMD_ERASE, (uint32_t)0x0, SDIO_RESPONSETYPE_SHORT);
sdio_wait_type_set(SDIO, SDIO_WAITTYPE_NO);
sdio_csm_enable(SDIO);
/* check if some error occurs */
status = r1_error_check(SD_CMD_ERASE);
if(SD_OK != status) {
return status;
}
/* loop until the counter is reach to the calculated time */
for(count = 0U; count < delay; count++) {
}
/* get the card state and wait the card is out of programming and receiving state */
status = sd_card_state_get(&cardstate);
while((SD_OK == status) && ((SD_CARDSTATE_PROGRAMMING == cardstate) || (SD_CARDSTATE_RECEIVING == cardstate))) {
status = sd_card_state_get(&cardstate);
}
return status;
}

12.4.7 主函數

SD卡主函數如下，可實現對SD卡的擦寫讀以及加鎖解鎖操作。

C
int main()
{
sd_error_enum sd_error;
Drv_Err state = DRV_ERROR;

uint16_t i = 5;

ifdef DATA_PRINT

uint8_t *pdata;

endif /* DATA_PRINT */

/* enable the CPU Cache */
driver_init();

/* configure the NVIC and USART */
nvic_config();

bsp_led_group_init();

/* turn off all the LEDs */
bsp_led_off(&LED1);
bsp_led_off(&LED2);

/* initialize the card */
do {
sd_error = sd_io_init();
} while((SD_OK != sd_error) && (--i));

if(i) {
printf_log("\r\n Card init success!\r\n");
} else {
printf_log("\r\n Card init failed!\r\n");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
}

/* get the information of the card and print it out by USART */
card_info_get();

/* init the write buffer */
for(i = 0; i < 512; i++) {
buf_write[i] = i;
}

/* clean and invalidate buffer in D-Cache */
SCB_CleanInvalidateDCache_by_Addr(buf_write, 512 * 4);

printf_log("\r\n\r\n Card test:");
/* single block operation test */
sd_error = sd_block_write(buf_write, 100, 512);
if(SD_OK != sd_error) {
printf_log("\r\n Block write fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n Block write success!");
}

sd_error = sd_block_read(buf_read, 100, 512);
if(SD_OK != sd_error) {
printf_log("\r\n Block read fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n Block read success!");

ifdef DATA_PRINT

SCB_CleanInvalidateDCache_by_Addr(buf_read, 512 * 4);
pdata = (uint8_t *)buf_read;
/* print data by USART */
printf_log("\r\n");
for(i = 0; i < 128; i++) {
printf_log(" %3d %3d %3d %3d ", *pdata, *(pdata + 1), *(pdata + 2), *(pdata + 3));
pdata += 4;
if(0 == (i + 1) % 4) {
printf_log("\r\n");
}
}

endif /* DATA_PRINT */

}

/* compare the write date and the read data */
state = memory_compare((uint8_t *)buf_write, (uint8_t *)buf_read, 128*4);
if(SUCCESS == state) {
printf_log("\r\n Single block read compare successfully!");
} else {
printf_log("\r\n Single block read compare fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
}

/* lock and unlock operation test */
if(SD_CCC_LOCK_CARD & sd_cardinfo.card_csd.ccc) {
/* lock the card */
sd_error = sd_lock_unlock(SD_LOCK);
if(SD_OK != sd_error) {
printf_log("\r\n Lock failed!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n The card is locked!");
}
sd_error = sd_erase(100, 101);
if(SD_OK != sd_error) {
printf_log("\r\n Erase failed!");
} else {
printf_log("\r\n Erase success!");
}

/* unlock the card */
sd_error = sd_lock_unlock(SD_UNLOCK);
if(SD_OK != sd_error) {
printf_log("\r\n Unlock failed!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n The card is unlocked!");
}
sd_error = sd_erase(100, 101);
if(SD_OK != sd_error) {
printf_log("\r\n Erase failed!");
} else {
printf_log("\r\n Erase success!");
}

sd_error = sd_block_read(buf_read, 100, 512);
if(SD_OK != sd_error) {
printf_log("\r\n Block read fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n Block read success!");

ifdef DATA_PRINT

SCB_CleanInvalidateDCache_by_Addr(buf_read, 512 * 4);
pdata = (uint8_t *)buf_read;
/* print data by USART */
printf_log("\r\n");
for(i = 0; i < 128; i++) {
printf_log(" %3d %3d %3d %3d ", *pdata, *(pdata + 1), *(pdata + 2), *(pdata + 3));
pdata += 4;
if(0 == (i + 1) % 4) {
printf_log("\r\n");
}
}

endif /* DATA_PRINT */

}
}

/* multiple blocks operation test */
sd_error = sd_multiblocks_write(buf_write, 200, 512, 3);
if(SD_OK != sd_error) {
printf_log("\r\n Multiple block write fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n Multiple block write success!");
}

sd_error = sd_multiblocks_read(buf_read, 200, 512, 3);
if(SD_OK != sd_error) {
printf_log("\r\n Multiple block read fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
} else {
printf_log("\r\n Multiple block read success!");

ifdef DATA_PRINT

SCB_CleanInvalidateDCache_by_Addr(buf_read, 512 * 4);
pdata = (uint8_t *)buf_read;
/* print data by USART */
printf_log("\r\n");
for(i = 0; i < 512; i++) {
printf_log(" %3d %3d %3d %3d ", *pdata, *(pdata + 1), *(pdata + 2), *(pdata + 3));
pdata += 4;
if(0 == (i + 1) % 4) {
printf_log("\r\n");
}
}

endif /* DATA_PRINT */

}
/* compare the write date and the read data */
state = memory_compare((uint8_t *)buf_write, (uint8_t *)buf_read, 128*3*4);

if(SUCCESS == state) {
printf_log("\r\n Multiple block read compare successfully!");
} else {
printf_log("\r\n Multiple block read compare fail!");
/* turn on LED1, LED2 */
bsp_led_on(&LED1);
bsp_led_on(&LED2);
while(1) {
}
}
printf_log("\r\n SD card test successfully!");
while(1) {};
}

12.5 實驗結果

將SD卡讀寫實驗例程燒錄到海棠派開發板中，并在卡槽中插入SD卡，在液晶屏上，將會觀察到SD卡相關操作結果。
